Mission Service

The Mission Service is a way for API clients to specify high level autonomous behaviors for Spot using behavior trees.

Behavior trees

Behavior trees allow clients to specify behaviors as simple as executing a sequence of tasks as well as more complicated behaviors, such as returning the robot to base when the battery is low. Behavior trees are commonly used in AI to define the behavior of non-player characters in video gaming.

Behavior trees consist of structural nodes that control how the tree is parsed, and action nodes, which carry out some action, such as making the robot navigate from place to place or activate a payload.

Each node may have zero or more children. Each child can be thought of as a distinct behavior tree, also called subtrees. For example, you can have a behavior tree that powers the robot on, then stands the robot up. That behavior tree can then be inserted as a child of another node.

Behavior tree blackboard

Certain action nodes depend on state that might be dynamically created by other nodes in the tree. State is written to and read from a blackboard, a messaging capability that allows nodes to share state in the behavior tree.

For example, the BosdynRobotState action node will read state from the robot, including whether or not motor power is on, and create a blackboard entry with the value of the state. The child of BosdynRobotState (and all of its children’s children) can read that information. Variables in the blackboard are scoped such that only the child of a node that defines a variable can read or write that variable.

If a node A defines a variable “MyVariable” and has a child node B, node B is allowed to also define “MyVariable” in the blackboard. Node B and its children will only be able to interact with Node B’s version of “MyVariable”.

Behavior tree node types

A behavior tree consists of a hierarchy of structural and action nodes.

Structural nodes control the order in which nodes are visited in mission execution or if they are visited at all.

Structural nodes

Node Description
Sequence Specify a list of actions for the robot to perform. Child nodes are run in order until one of them fails. Sequences can be nested or combined with other structural node types.
Selector Selectors run their child nodes in order until one of them succeeds.
Repeat Loop a subtree a certain number of times.
Retry Loop a subtree until it succeeds.
ForDuration Loop a subtree until it fails.
SimpleParallel Execute two nodes or subtrees at the same time.
Switch Execute a specific child node based on a pivot value.

Action nodes

Action nodes take some action, such as making the robot do something or triggering a payload to do something.

Node Description
Condition Express a binary comparison operation that returns true if the condition is true and false otherwise.
BosdynRobotState Query robot service names, host, child nodes, battery, comms, E-Stop, kinematic and other robot system states.
BosdynRobotCommand Issue a command to a robot to stop, freeze, self right, sit, stand, power off safely, go to a destination, or walk with some velocity.
BosdynPowerRequest Power the robot on or off.
BosdynNavigateTo Autonomously move the robot. Includes parameters for controlling properties, such as speed.
BosdynGraphNavState Request the mission service to save graph nav state to the blackboard, where it can be accessed by a Condition node.
RemoteGrpc Customize the behavior of missions. Example: trigger a remote sensor payload to take a reading during an autonomous mission.
Sleep Sleep for a specified number of seconds.
Prompt Prompt a supervisor with a question, such as "Is it safe to cross the street?" The supervisor can be a robot operator responding to a UI prompt or an automated process running anywhere that can communicate with the robot.
PTZ Aim the Spot CAM PTZ at a specified pan, tilt, and zoom. Optionally, automatically adjust aim to offset differences in Spot positioning and orientation between playbacks.
SpotCamStoreMedia Issue a request to write images to the Spot CAM USB stick. Note that an installed Spot CAM payload is required and the USB stick must be inserted before booting the robot.
Dock Issue a command to dock the robot at the specified station.
DefineBlackboard Specify a blackboard variable for this node's children to use.
SetBlackboard Write to a blackboard variable. The variable must have already been defined.
ConstantResult Always return one of the standard status codes (SUCCESS, RUNNING, or FAILURE).
ExecuteChoreography Perform an uploaded choreography sequence with a specificed name.
MissionUploadChoreography Upload a specified group of choreography sequences and animated moves.

Creating a behavior tree

The following sections provide Python code that directly uses Python-compiled protocol buffers to build our behavior tree representations, also called “missions”.

All of the node types described above have a corresponding protocol buffer message definition. Each one must be wrapped by a general Node message. For example, here is a single-node mission titled “Just power on” that will power on the robot:

...
power_on = nodes_pb2.BosdynPowerRequest(service_name='power',

                                    host='localhost',
                                    request=power_pb2.PowerCommandRequest.REQUEST_ON)

power_on_mission = nodes_pb2.Node(name='Just power on')
power_on_mission.bosdyn_power_request.CopyFrom(power_on)
...

Simple sequence example

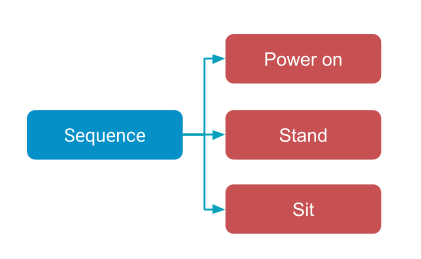

The following behavior tree diagram depicts a simple linear sequence of actions.

Simple behavior tree

The following Python code snippet implements the simple linear behavior tree shown above using BosdynRobotCommand action nodes, plus the “Just power on” mission from before.

...
request = basic_command_pb2.StandCommand.Request()
mobility_command = mobility_command_pb2.MobilityCommand.Request(
                                    stand_request=request)
synchronized_command = synchronized_command_pb2.SynchronizedCommand.Request(
                                    mobility_command=mobility_command)
robot_command = robot_command_pb2.RobotCommand(
                                    synchronized_command=synchronized_command)
stand = nodes_pb2.BosdynRobotCommand(service_name='robot-command',
                                    host='localhost',
                                    command=robot_command)
stand_mission = nodes_pb2.Node(name='Just stand')
stand_mission.bosdyn_robot_command.CopyFrom(stand)

request = basic_command_pb2.SitCommand.Request()
mobility_command = mobility_command_pb2.MobilityCommand.Request(
                                    sit_request=request)
synchronized_command = synchronized_command_pb2.SynchronizedCommand.Request(
                                    mobility_command=mobility_command)
robot_command = robot_command_pb2.RobotCommand(
                                    synchronized_command=synchronized_command)
sit = nodes_pb2.BosdynRobotCommand(service_name='robot-command',
                                    host='localhost',
                                    command=robot_command)
sit_mission = nodes_pb2.Node(name='Just sit')
sit_mission.bosdyn_robot_command.CopyFrom(sit)

sequence = nodes_pb2.Sequence()
sequence.children.add().CopyFrom(power_on_mission)
sequence.children.add().CopyFrom(stand_mission)
sequence.children.add().CopyFrom(sit_mission)

mission = nodes_pb2.Node(name='Power on then stand then sit')
mission.sequence.CopyFrom(sequence)
...

More complex behavior tree example

The following behavior tree diagram shows the structure of a mission that repeats a task until either the designated number of iterations are completed or until the robot battery reaches a low-charge threshold.

Complex behavior tree

In this example, the robot stands up and then performs a demo of walking between two locations 10 times, finally going to some location labeled “demo end.” If at any point the battery is below some threshold, or the robot successfully goes to the “demo end” location, the robot will go to a location labeled “Home” and power off.

The root of the tree is a sequence that makes the robot stand, then run the selector node, then perform the “go home and power off” sequence.

The code below shows how to set up the mission, assuming the inner sequence of “Repeat 10” and “Goto demo end” is contained in the battery_high_mission and the sequence of “Stand,” “Goto Home,” and “Power off” is contained in the battery_low_mission.

First we set up the node that will query the robot state and insert it into the blackboard. Note that state_name is set to “state.” We will use that string in the Condition node.

robot_state = nodes_pb2.BosdynRobotState(service_name='robot-state',
                                     host='localhost',
                                     state_name='state')

Now we tell the Condition node to read power_state.locomotion_charge_percentage.value from state, and see if it is less than or equal to 20.

...
is_battery_low = nodes_pb2.Condition()
is_battery_low.lhs.var.name = 'state.power_state.locomotion_charge_percentage.value'
is_battery_low.lhs.var.type = util_pb2.VariableDeclaration.TYPE_FLOAT
is_battery_low.operation = nodes_pb2.Condition.COMPARE_LE
is_battery_low.rhs.const.float_value = 20

is_battery_low_mission = nodes_pb2.Node()
is_battery_low_mission.condition.CopyFrom(is_battery_low)
...

The Condition node must be the child of the BosdynRobotState node, in order for it to read the state out of the blackboard.

...
robot_state.child.CopyFrom(is_battery_low_mission)

robot_state_mission = nodes_pb2.Node()
robot_state_mission.bosdyn_robot_state.CopyFrom(robot_state)
...

The Selector is set to “always restart”, so that it will execute the BosdynRobotState and its Condition node child on every tick. This means that the behavior tree is reading new state from the robot and checking the battery percentage against the latest value.

...
selector_mission = nodes_pb2.Node()
selector = selector_mission.selector
selector.always_restart = True
selector.children.add().CopyFrom(robot_state_mission)
selector.children.add().CopyFrom(battery_high_mission)

sequence = nodes_pb2.Sequence()
sequence.children.add().CopyFrom(stand_mission)
sequence.children.add().CopyFrom(selector_mission)
sequence.children.add().CopyFrom(battery_low_mission)

mission = nodes_pb2.Node(name='Do A while battery % > 20, otherwise do B')
mission.sequence.CopyFrom(sequence)
...

MissionService RPCs

The MissionService provides RPCs for clients to load and play missions recorded using the GraphNavRecordingService.

RPC Description
LoadMission Load a mission to run later.
PlayMission Start executing a loaded or paused mission.
PauseMission Pause mission execution.
RestartMission Start executing a loaded mission from the beginning.
GetState Get the state of the mission.
GetInfo Get static information regarding the mission.
GetMission Download the mission as it was uploaded to the service.
AnswerQuestion Specify an answer to a question asked by the mission.

RemoteMissionService RPCs

RemoteMissionService RPCs are called by MissionService to communicate with a robot payload. The mission service uses these RPCs to communicate with a remote mission service.

RPC Description
EstablishSession Call this once at mission load time, per node.
Tick Call this every time the RemoteGrpc node is ticked.
Stop Call this every time the RemoteGrpc node was ticked in the previous cycle, but not ticked in this cycle.
TeardownSession Tells the service it can forget any data associated with the given session.
